FOOT FUNCTION AND WALKING

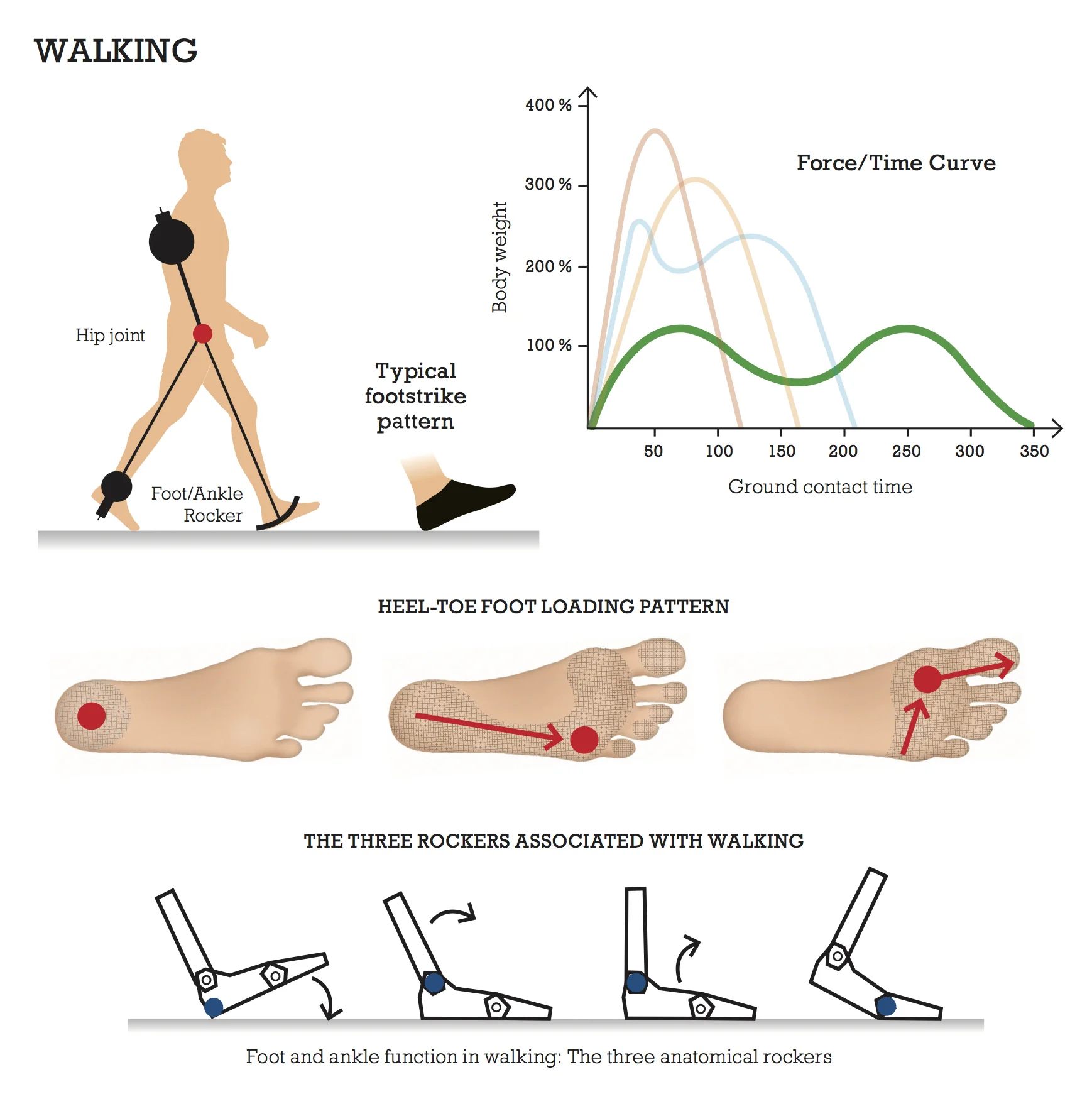

Walking is a true pendulum-like gait. The body’s centre of gravity rises and falls over a stiff, supporting leg creating an exchange of kinetic and potential energy (like an inverted pendulum). The mechanics of the foot and ankle are integral to the pendulum effect, providing a stable but mobile base of support for the the body to ‘vault’ over via a system of 3 rockers or pivots operating in the sagittal plane (see diagram). The leg is also acting like a pendulum during ‘swing phase’ as it swings back and forth from the hip Joint.

Any restriction in the sagittal plane due to compromised foot or ankle function will cause compensations to occur in the frontal and transverse planes (toeing out, bow legs, over pronation etc.).

The most common sagittal blocks are in the ‘ankle rocker’, due to reduced functional range in the ankle joint, and in the ‘forefoot rocker’, due to hallux valgus/hallux rigidus. The 3 rockers create the classic heel-toe action that characterises walking in humans.

The key feature required in a ‘walking shoe’:

  • An anatomical toe box; wide, flat and foot-shaped to restore and maintain the

  • ‘forefoot rocker’ and the stabilising function of the toes. Sole thickness, cushioning, heel height etc. are negotiable based on the terrain, climate, BMI and age of the walker.

HUMAN LOCOMOTION

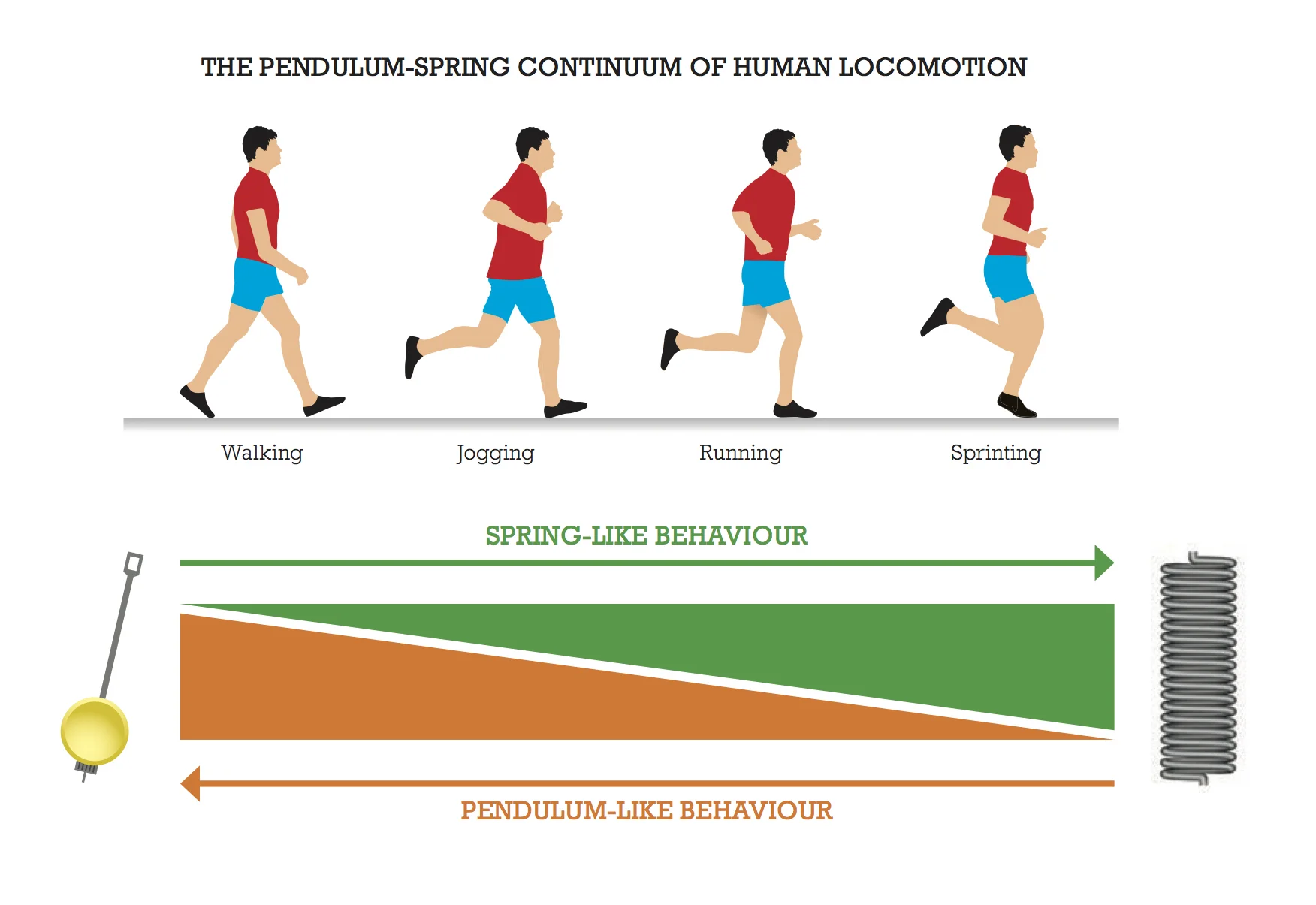

The biomechanics of human locomotion can be explained by the physics of pendulums and springs. Humans have essentially four locomotive strategies available: walking, jogging, running, sprinting.

These locomotive strategies become progressively less pendulum like and more spring like as speed and gravitational loading increase and contact time decreases (see diagram).

Each locomotive strategy has energetic and biomechanical consequences i.e. metabolic cost and risk of injury.

Skillful human movement is characterised by adopting the locomotive strategy for a given speed and terrain that maximises economy while minimising injury risk.

Movement strategy selection is influenced by several factors including habit, conditioning and accurate sensory feedback about the external environment.




References

Perry J. Gait Analysis: Normal and Pathological Function. SLACK inc (1992)

Kuo AD et al. Energetic consequences of walking like an Inverted pendulum: step-to-step transitions. Exercise and Sport Sciences Reviews (2005)

Doke J et al. Mechanics and energetics of swinging the human leg. The Journal of Experimental Biology (2005)

Hughes J et al. The Importance of the toes in walking. The Journal of Bone and Joint Surgery (1990)

Lambrinudi C. Use and abuse of toes. Post Graduate Medical Journal (1932)

Bowerman WJ. Jogging. Corgi (1967)

Cavanagh PR . Ed. The Biomechanics of Distance Running. Human Kinetics (1990)

Bosch F, Klomp R. Running: Biomechanics and Exercise Physiology Applied in Practice. Elsevier (2005)

De Almeida MO et al. Is the rearfoot pattern the most frequent foot strike pattern among recreational shod distance runners? Physical Therapy in Sport (2015)

Pink M et al. Lower extremity range of motion in the recreational sport runner.

The American Journal of Sports Medicine (1994)

Mei Q et al. Investigating biomechanical function of toes through external manipulation integrating analysis. Acta of Bioengineering and Biomechanics (2015)

Cavanagh PR et al. Pressure Distribution under symptom-free feet during barefoot standing. Foot & Ankle (1987)

Drewes LK et al. Dorsiflexion deficit during jogging with chronic ankle instability. Journal of Science and Medicine in Sport (2008)

Jahss MH et al. Investigations into the Fat Pads of the Sole of the Foot: Anatomy and Histology. Foot & Ankle (1992)

Jahss MH et al. Investigations into the Fat Pads of the Sole of the Foot: Heel Pressure Studies. Foot & Ankle (1992)

Ozdemir H et al. Effects of changes in heel fat pad thickness and elasticity on heel pain. Journal of the American Podiatric Medical Association (2004)

Mann RA, Hagy JL. Biomechanics of walking, running and sprinting. The American Journal of Sports Medicine (1980)

Mann RA, Hagy JL. The Function of the toes in walking, jogging and running. Clinical Orthopaedics and Related Research (1979)

Novachek TF. The biomechanics of running. Gait and Posture (1998)

Kyrolainen H et al. Changes in muscle activity with increasing running speed. Journal of Sports Sciences (2005)

Nummela AT, Keranen T. Factors Related to top running speed and economy. International Journal of Sports Medicine (2007)

Dorn TW et al. Muscular strategy shift in human running: dependence of running speed on hip and ankle muscle performance. The Journal of Experimental Biology (2012)

Bushnell T, Hunter I. Differences in technique between sprinters and distance runners at equal and maximal speeds. Sports Biomechanics (2007)

Korhonen MT et al. Age-related differences in 100m sprint performance in male and female master runners. Medicine and Science in Sports and Exercise (2003)

Wilkinson et al Feet and footwear: applying biological design and mismatch theory to running injuries. International Journal of Sports and Exercise Medicine (2018)
